525,28 lei
Out of stock
Out of stock
Payment Methods:

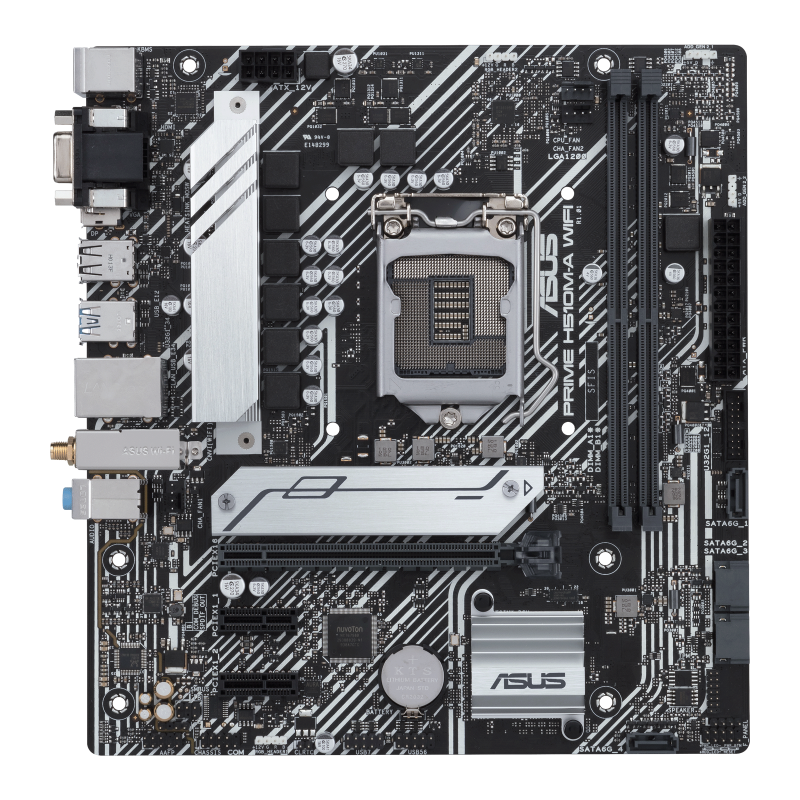

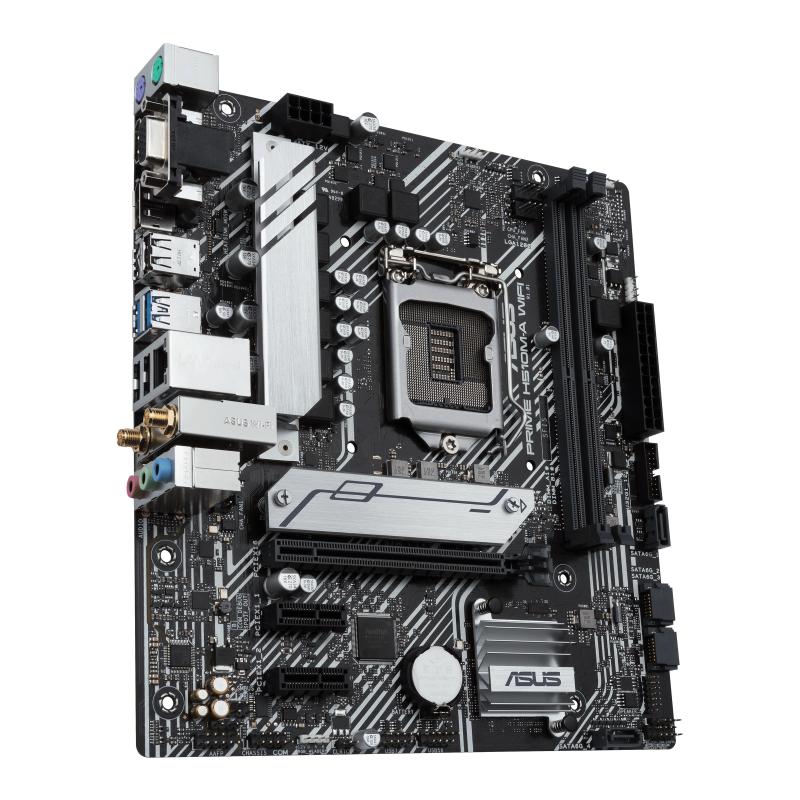

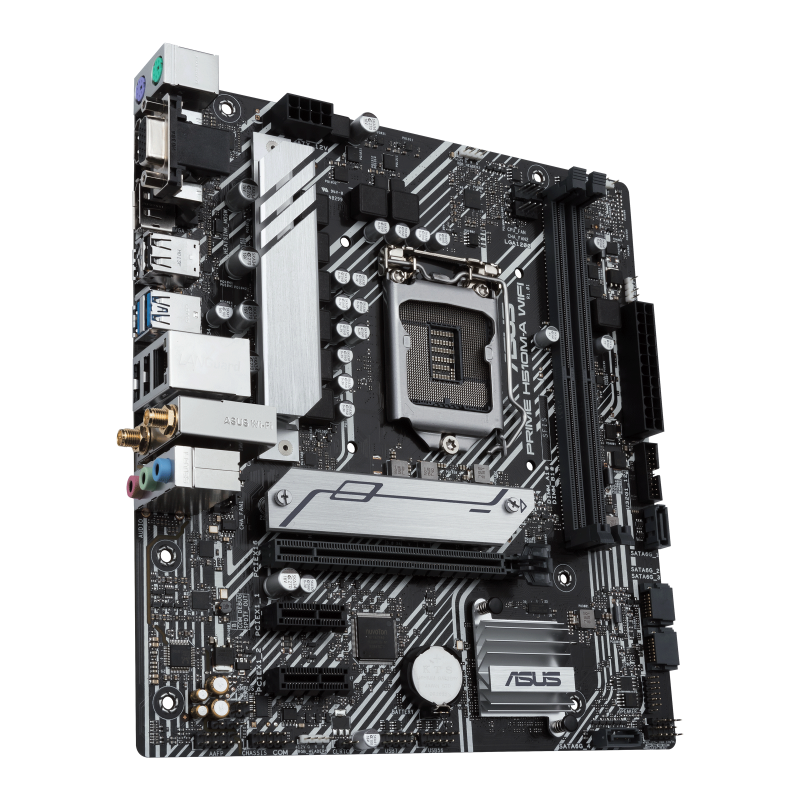

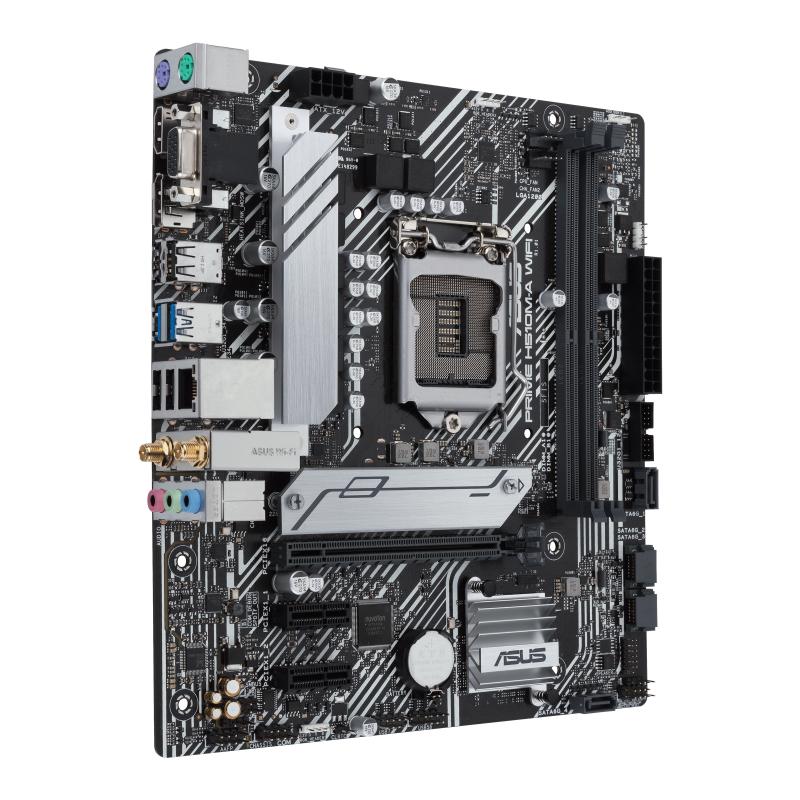

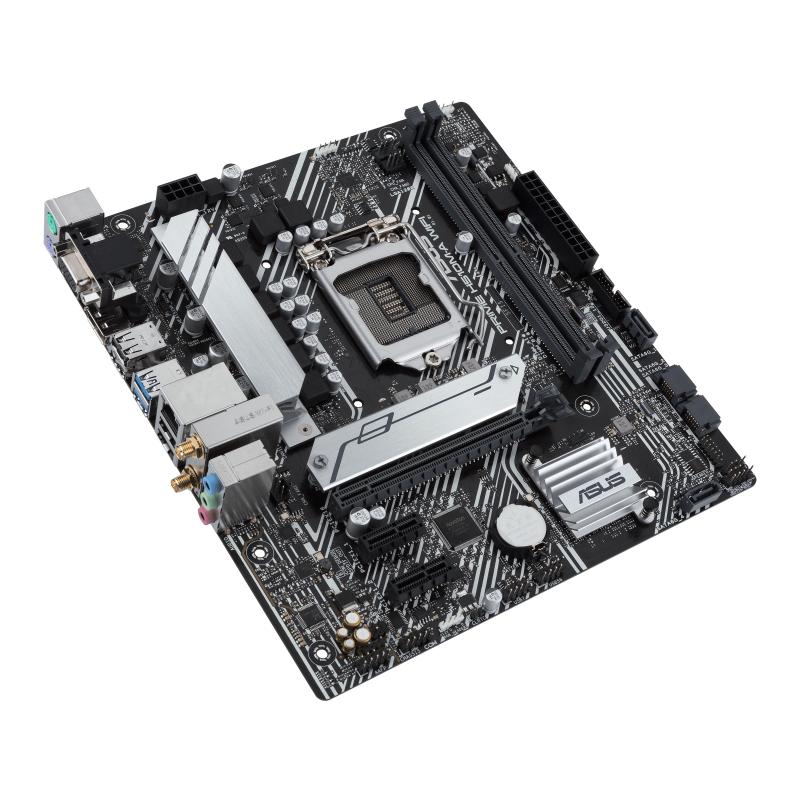

Placile de baza ASUS din seria Prime sunt proiectate in mod expert pentru a elibera intregul potential al procesoarelor Intel® din generatiile 11 si 10. Dispunand de un design robust din punct de vedere energetic, solutii de racire complete si optiuni inteligente de reglaj, PRIME H510M-A WIFI ofera utilizatorilor zilnici si constructorilor de PC-uri DIY o gama de optiuni de reglare a performantelor prin intermediul unor functii software si firmware intuitive.
Overview
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
No/No |
| Video-Connection |
VGA/HDMI |
| Wi-Fi |
Yes |
| CPU încorporat |
No |
| Component for |
PC |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| DisplayPort version |
1.4 |
| Ethernet interface type |
Gigabit Ethernet |
| Windows operating systems supported |
Windows 10 x64 |
| Harmonized System (HS) code |
84733020 |
| Memory channels |
Dual-channel |
| Processor manufacturer |
Intel |
| Maximum internal memory |
64 GB |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
2.0 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Bluetooth version |
5.1 |
| WLAN controller model |
Intel Dual Band Wireless-AC 9462 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
0 |
| USB 2.0 ports quantity |
4 |
| PCI Express x1 (Gen 3.x) slots |
2 |
| Audio output channels |
7.1 channels |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Number of memory slots |
2 |
| Supported storage drive types |
HDD & SSD |
| Supported memory types |
DDR4-SDRAM |
| LAN controller |
Intel® I219-V |
| Number of M.2 (M) slots |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
0 |
| Drivers included |
Yes |
| Model Chipset |
H510 |
| Gaming |
Nu |
| Format |
Micro-ATX (mATX) |
| Soclu Procesor |
Socket 1200 |
| Tip Memorie |
DDR4 |
| Numar sloturi memorie |
2 |
| Memorie maxima |
64 GB |
| Tip slot interfata grafica |
PCIe 4.0 x16 |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Da |
| BLUETOOTH |
Da |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
1 |
| RJ-45 LAN |
1 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Number of Parallel ATA connectors |
0 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
2 |
| EPS power connector (8-pin) |
Yes |
| Motherboard form factor |
micro ATX |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Yes |
| Height |
51 mm |
| TPM connector |
Yes |
| RGB LED pin header |
Yes |
| WiFi-AP antenna jack |
2 |
| Motherboard chipset family |
Intel |
| Power source type |
ATX |
| Maximum number of SMP processors |
1 |
| Maximum resolution |
4096 x 2304 pixels |
| 12V power connector |
Yes |
| Cables included |
SATA |
| ECC сompatibility |
Non-ECC |
| S/PDIF out connector |
Yes |
| Number of COM connectors |
1 |
| BIOS memory size |
128 Mbit |
| eSATA ports quantity |
0 |
| Firewire (IEEE 1394) ports |
0 |
| Processor socket |
LGA 1200 (Socket H5) |
| Number of storage drives supported |
5 |
| Number of displays supported |
3 |
| Audio connector |
Yes |
| PS/2 ports quantity |
2 |
| Width |
226 mm |
| Number of mounting holes |
6 |
| Supported storage drive interfaces |
M.2, SATA |
| Audio Chip |
Realtek ALC887 / Realtek ALC897 |
| Depth |
211 mm |
| Number of EATX power connectors |
1 |
| Weight |
815 g |
| Motherboard chipset |
Intel H510 |
| Compatible processor series |
Intel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Supported memory clock speeds |
2133,2400,2666,2800,2933 MHz |
| Peripheral (Molex) power connectors (4-pin) |
3 |
| Producator |
ASUS |
| Garantie |
36 |
