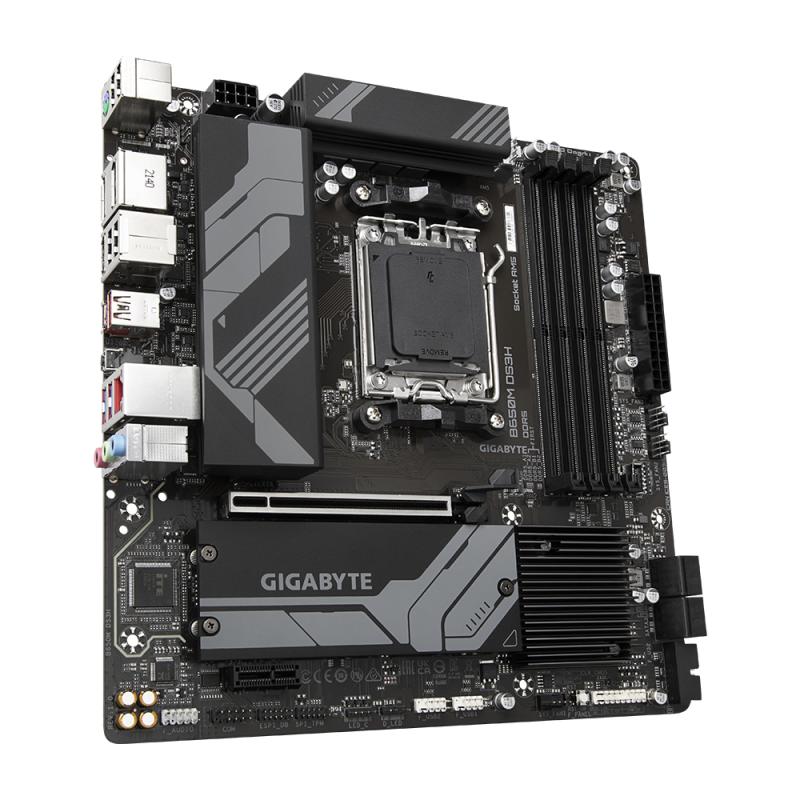

Placa de baza Gigabyte B650M DS3H AM5

627,66 lei

19 People watching this product now!

Payment Methods:

Descriere

Placa de baza Gigabyte B650M DS3H AM5 AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support SuperSpeed Storage：2*PCIe 4.0 x4 M.2 Connectors Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance PCIe x16 EZ-Latch with Quick Release & Screwless Design Fast Networks：2.5GbE LAN Extended Connectivity：2*DP, HDMI, 2*USB-C® 10Gb/s Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Specificatii

Overview

PCI

0
Serial-or-Paralel

No/No
Video-Connection

HDMI/DP
Wi-Fi

No
Onboard-CPU

No
Country of origin

China
RAID support

Yes
Warranty period

3 year(s)
Component for

PC
DisplayPort version

1.4
Memory channels

Dual-channel
Ethernet LAN

Yes
HDMI ports quantity

1
Ethernet LAN (RJ-45) ports

1
HDMI version

2.1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1
Headphone outputs

1
Processor manufacturer

AMD
Microphone in

Yes
Depth

244 mm
Products per shipping (inner) case

1 pc(s)
Batteries included

Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0
USB 2.0 ports quantity

4
Audio output channels

7.1 channels
PCI Express x1 (Gen 3.x) slots

1
DisplayPorts quantity

2
Line-in

Yes
Audio Chip

Realtek ALC897
PCI Express x16 (Gen 4.x) slots

1
Supported storage drive types

HDD & SSD
Number of M.2 (M) slots

2
HDCP

Yes
Screws included

Yes
Product colour

Brown
Package depth

268 mm
VGA (D-Sub) ports quantity

0
Parallel processing technology support

Not supported
DVI-D ports quantity

0
DirectX version

12.0
Maximum resolution

4096 x 2160 pixels
Windows operating systems supported

Windows 10 x64, Windows 11 x64
Package height

68 mm
Package weight

1.68 kg
Model Chipset

B650
Gaming

Nu
Format

Micro-ATX (mATX)
Soclu Procesor

Socket AM5
Tip Memorie

DDR5
Numar sloturi memorie

4
Memorie maxima

256 GB
Tip slot interfata grafica

PCIe 4.0 x16
Chipset audio integrat

Realtek
Canale audio

7.1
Wireless

Nu
BLUETOOTH

Nu
USB Type-C

Da
HDMI

Da
Thunderbolt

Nu
Sloturi M.2

2
RJ-45 LAN

1
Number of memory slots

4
Memory slots type

DIMM
Unbuffered memory

Yes
Supported storage drive interfaces

M.2, SATA III
USB 2.0 connectors

2
USB 3.2 Gen 1 (3.1 Gen 1) connectors

1
Number of SATA III connectors

4
Front panel audio connector

Yes
ATX Power connector (24-pin)

Yes
CPU fan connector

Yes
EPS power connector (8-pin)

Yes
PS/2 ports quantity

1
Motherboard form factor

micro ATX
Motherboard chipset family

AMD
BIOS type

UEFI AMI
BIOS memory size

256 Mbit
Clear CMOS jumper

Yes
Width

244 mm
Supported memory types

DDR5-SDRAM
Maximum internal memory

256 GB
Maximum internal memory per slot

64 GB
Number of HDDs supported

4
USB 3.2 Gen 2 (3.1 Gen 2) connectors

1
Front panel connector

Yes
TPM connector

Yes
RGB LED pin header

Yes
Ethernet interface type

2.5 Gigabit Ethernet
LAN controller

Realtek RTL8125
Power source type

ATX
2nd M.2 highest PCI Express generation

4.0
ACPI version

5.0
Desktop Management Interface (DMI) version

2.7
System Management BIOS (SMBIOS) version

2.7
Battery weight

3 g
Lithium weight per battery

0.07 g
Number of battery cells

1
Battery technology

Lithium-Manganese Dioxide (LiMnO2)
Battery type

CR2032
Height

35 mm
Discrete graphics support

Yes
12V power connector

Yes
ECC сompatibility

Non-ECC
Number of storage drives supported

6
Package width

270 mm
Serial port headers

1
RAID levels

0, 1, 10
Processor socket

Socket AM5
Supported processor sockets

Socket AM5
Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Number of chassis fan connectors

3
PC health monitoring

Fan, Temperature, Voltage
Motherboard chipset

AMD B650
Number of EPS power connectors (8-pin)

1
2nd M.2 largest key size

25110
Number of CPU fan connectors

1
1st M.2 highest PCI Express generation

4.0
Number of RGB LED pin headers

3
Supported memory clock speeds

4800,5200,5600,6000,6200,6400,6600,6800,7000,7200,7600,7800,8000 MHz
1st M.2 largest key size

22110
Producator

GIGABYTE
Garantie

36
