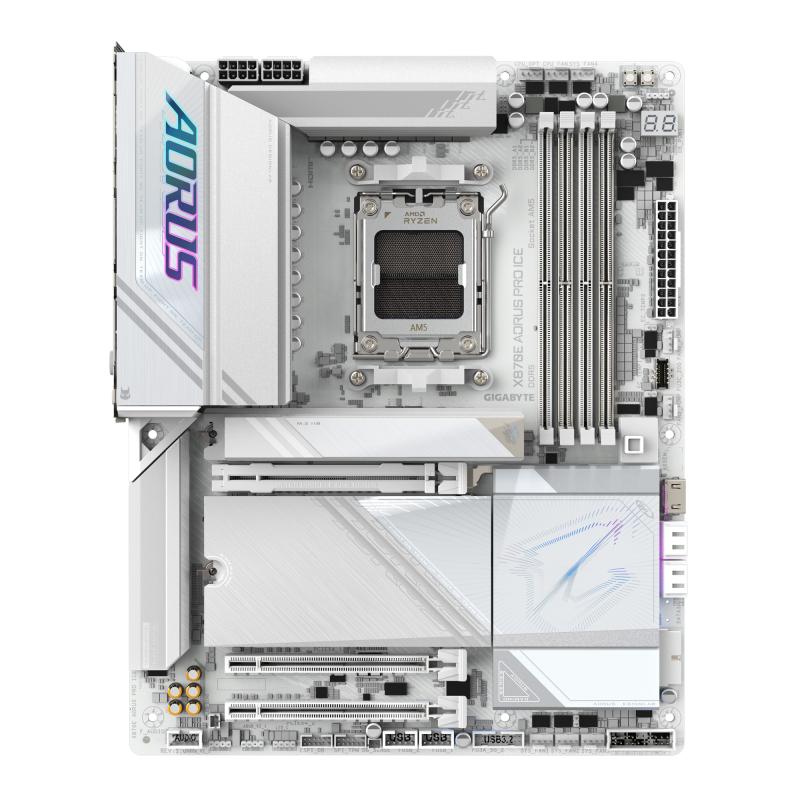

Placa de Baza GIGABYTE X870E AORUS PRO ICE AM5, 4x DDR5, 2x USB4 1x HDMI 1x front HDMI, 3x PCIE x16, 4x M.2, 4x SATA 6GB/s, ATX
Placa de Baza GIGABYTE X870 GAMING WIFI6 AM5
964,51 lei
Placa de Baza GIGABYTE X870 AORUS PRO AM5
1.547,03 lei
Placa de Baza GIGABYTE X870E AORUS PRO ICE AM5
1.536,01 lei
14
People watching this product now!
Payment Methods:
Descriere
Specificatii
Overview
| PCI |
0 |
|---|---|
| Serial-or-Paralel |
Yes/No |
| Video-Connection |
HDMI |
| Wi-Fi |
Yes |
| Onboard-CPU |
No |
| Country of origin |
China |
| RAID support |
Yes |
| Warranty period |
3 year(s) |
| Component for |
PC |
| Product colour |
White |
| DisplayPort version |
1.4 |
| Memory channels |
Dual-channel |
| Ethernet LAN |
Yes |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
2.1 |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Bluetooth version |
5.3 |
| Headphone outputs |
1 |
| Processor manufacturer |
AMD |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Weight |
2.4 kg |
| Microphone in |
Yes |
| USB 2.0 ports quantity |
2 |
| Width |
305 mm |
| Depth |
244 mm |
| Products per shipping (inner) case |
1 pc(s) |
| Batteries included |
Yes |
| USB4 Gen 3x2 ports quantity |
0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
4 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| Audio output channels |
7.1 channels |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| On-board graphics card |
No |
| Supported storage drive types |
HDD & SSD |
| S/PDIF out port |
Yes |
| USB 3.2 Gen 2x2 Type-C ports quantity |
0 |
| Screws included |
Yes |
| VGA (D-Sub) ports quantity |
0 |
| DisplayPorts quantity |
0 |
| Parallel processing technology support |
Not supported |
| DVI-D ports quantity |
0 |
| DirectX version |
12.0 |
| Model Chipset |
X870E |
| Gaming |
Da |
| Format |
ATX |
| Soclu Procesor |
Socket AM5 |
| Tip Memorie |
DDR5 |
| Numar sloturi memorie |
4 |
| Memorie maxima |
256 GB |
| Tip slot interfata grafica |
N/A |
| Chipset audio integrat |
Realtek |
| Canale audio |
7.1 |
| Wireless |
Da |
| BLUETOOTH |
Nu |
| USB Type-C |
Da |
| HDMI |
Da |
| Thunderbolt |
Nu |
| Sloturi M.2 |
4 |
| RJ-45 LAN |
1 |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Unbuffered memory |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
0 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| Motherboard chipset family |
AMD |
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Clear CMOS jumper |
Yes |
| mSATA ports quantity |
0 |
| Supported memory types |
DDR5-SDRAM |
| Maximum internal memory |
256 GB |
| Maximum internal memory per slot |
64 GB |
| Number of HDDs supported |
4 |
| Number of CPU fan connectors |
2 |
| Number of EPS power connectors (8-pin) |
2 |
| TPM connector |
Yes |
| Number of water pump connectors |
2 |
| RGB LED pin header |
Yes |
| Number of RGB LED pin headers |
4 |
| WiFi-AP antenna jack |
2 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| LAN controller |
Realtek RTL8125 |
| Motherboard form factor |
ATX |
| Windows operating systems supported |
Windows 11 x64 |
| 1st M.2 largest key size |
25110 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
22110 |
| 3rd M.2 largest key size |
22110 |
| ACPI version |
5.0 |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Battery weight |
3 g |
| Lithium weight per battery |
0.07 g |
| Number of battery cells |
1 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
| Package height |
80 mm |
| Height |
35 mm |
| Antenna included |
Yes |
| USB 3.2 Gen 2x2 connectors |
1 |
| Clear CMOS button |
Yes |
| ECC сompatibility |
Non-ECC |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| Number of storage drives supported |
8 |
| Number of M.2 (M) slots |
4 |
| PS/2 ports quantity |
0 |
| PCI Express x1 (Gen 3.x) slots |
0 |
| PCI Express x1 (Gen 4.x) slots |
0 |
| PCI Express x4 (Gen 4.x) slots |
0 |
| RAID levels |
0, 1, 10 |
| Number of chassis fan connectors |
6 |
| Processor socket |
Socket AM5 |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| 4th M.2 highest PCI Express generation |
4.0 |
| PC health monitoring |
Fan, Temperature, Voltage |
| Maximum internal memory supported by processor |
256 GB |
| USB4 Gen 2x2 ports quantity |
2 |
| Audio Chip |
Realtek ALC1220 |
| PCI Express x4 slots |
2 |
| PCI Express x8 (Gen 3.x) slots |
0 |
| PCI Express x8 (Gen 4.x) slots |
0 |
| PCI Express x8 (Gen 5.x) slots |
0 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 3rd M.2 highest PCI Express generation |
5.0 |
| 4th M.2 largest key size |
22110 |
| Package weight |
2.74 kg |
| PCI Express x4 (Gen 3.x) slots |
0 |
| Audio connector |
Yes |
| Package width |
345 mm |
| Motherboard chipset |
AMD X870E |
| Package depth |
294 mm |
| Supported memory clock speeds |
4400,4800,5600,6000,6200,6400,6600,6800,7000,7600,7800,8000,8200 MHz |
| Supported memory module capacities |
1GB, 2GB, 4GB, 8GB, 12GB, 24GB, 32GB |
| WLAN controller model |
Qualcomm QCNCM865 |
| Producator |
GIGABYTE |
| Garantie |
36 |
